Drafting Sleeves

3 STYLES

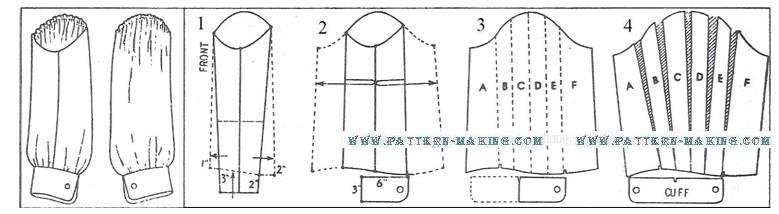

Illustration shows sleeve gathered into a wristband, 1” wide.

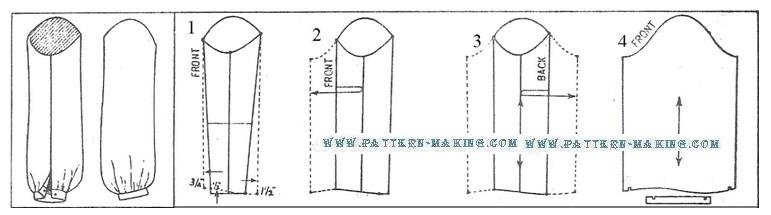

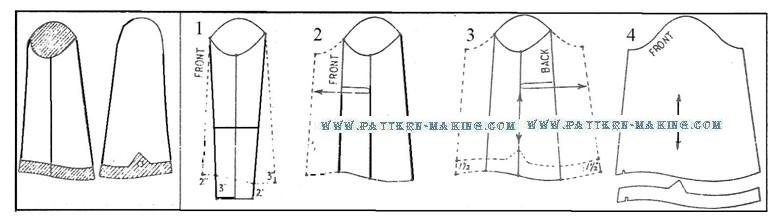

1) Trace sleeve draft according to the outline of the draft HERE, diagram 6; then draft sleeve for this style 2 and 3)

First trace front part of sleeve and open; then trace back of sleeve.

4) Make wristband 1” wide and the required length [about 7-1/2” for size 16]. Allow seams on all edges of sleeve and band. Band is usually made double.



Illustration . . .
