Sleeve Drafting

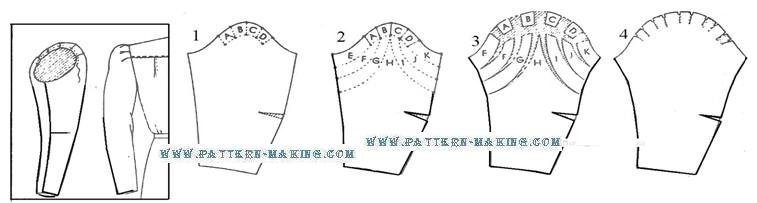

Illustration shows sleeve with great amount of fullness at top, but fitted from elbow to wrist.

1) Use the 1-piece shaped sleeve pattern as a guide, and mark a line down 4” long from the shoulder notch.

2) Mark position for slash lines, 4” apart on either side of the sleeve; then draw the lines and mark sections A to E.

3) Slash along dotted . . .
